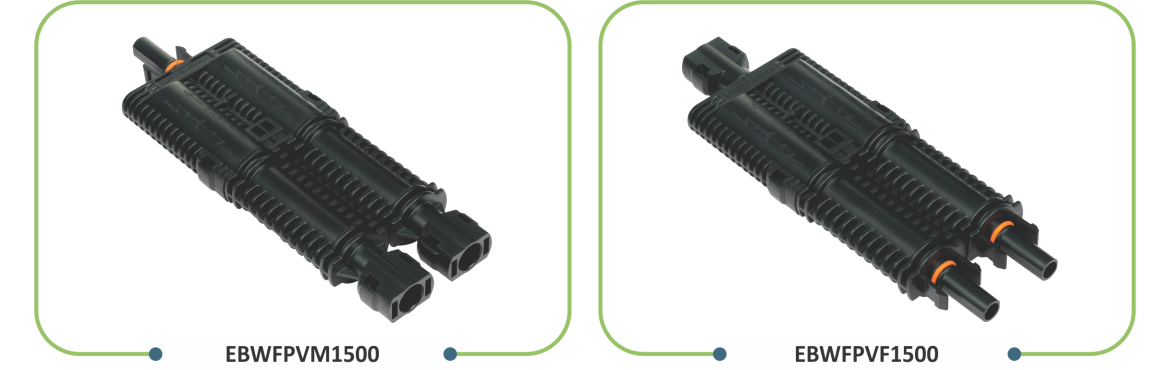

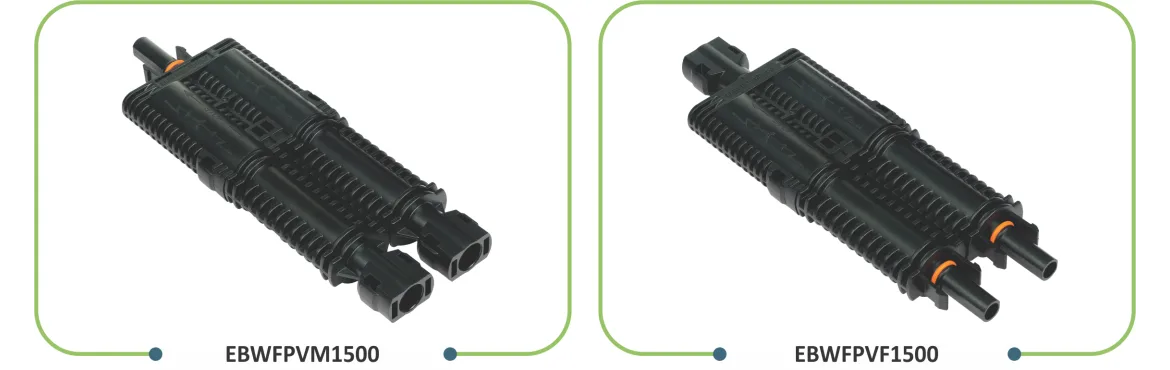

elmex PV Solar Branch Inline fuse connectors EBWFPVM1500 and EBWFPVF1500 are applicable for parallel connection for Photovoltaic string protection depending on on-site application. Branch inline fuse connectors have 3 branches, 2 for inputs either male or female and 1 for output either male or female. These connectors have plug and socket design and are constructed using flame retardant engineering thermoplastic suitable for exposure to UV rays & for application in PV power generation system. elmex PV branch inline fuse connectors are suitable for use with gPV (Cylindrical) fuse of ø 10 X 85 mm.
|
Description |
Specifications |
|
Rated Voltage |
1500V DC |
|
Rated Current |
30A |
|
RMS Test Voltage |
8 kV(1500 V) |
|
Degree of Protection |
IP 68 |
|
Contact Material |
Copper with Tin Plating |
|
Ambient Temperature |
-40° C to +85° C |
|
Max. Operating Temp. |
+110° C |
|
Pollution Degree |
3 |
|
Insertion Force |
<_50 N |
|
Withdrawal Force |
>_50 N |
|
Locking System |
Snap In |
Note: (1) It is recommended to use gPV (cylindrical) fuse of Ø 10 mm x 38 mm dimention.
(2) Connctors when mated , need a tool to open in accordance with NEC 2014.

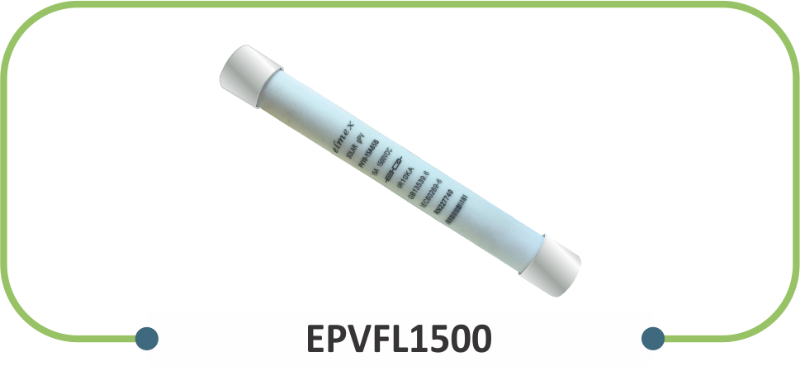

elmex gPV Fuse Link suitable for 1500V DC photovoltaic applications.
|
Description |
Specification |
|
Rated Voltage |
1500V DC |
|
Rated Current |
Upto 30A |
|
Type |
gPV (Cylindrical) |
|
Test Voltage |
ø 10 X 85 mm |
|
Testing Standard |
IEC 60269-6 |
